12 Lead Resting IPad / IPod Bluetooth ECG Device High Definition Display

I 'm Online Chat Now
Sertifikasi
kualitas baik Mesin EKG Genggam untuk penjualan
kualitas baik Mesin EKG Genggam untuk penjualan
Kualitas bagus dan pelayanan bagus

—— Dr.Alam dari Mesir

Produk sempurna, kecil dan cerdas!

—— Tuan Yann dari Perancis

12 Lead Resting IPad / IPod Bluetooth ECG Device High Definition Display

large.img.alt
small.img.alt small.img.alt small.img.alt

Gambar besar :  12 Lead Resting IPad / IPod Bluetooth ECG Device High Definition Display Harga terbaik

Detail produk:
Place of Origin: China(Mainland)
Nama merek: V&H
Sertifikasi: CE & ISO
Model Number: iCV200BLE
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1 set/sets
Packaging Details: standard package
Delivery Time: 7 working days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 sets per week
Detil Deskripsi produk
Product: 12 lead resting iPad / iPod ECG machine from Chinese manufacturer Type: Resting
Transfer Way: Bluetooth Defibrillation Protect: Build-in
Channel: Standard 12 channel Dynamic Range: ±15mV
Cahaya Tinggi:

bluetooth ecg device

,

iphone ecg monitor



12 lead resting iPad / iPod ECG machine from Chinese manufacturer



Advantages:

  1. The first professional elsctrocardiogram (ECG) product developed on android portable device.
  2. High-definition ECG display thanks to its Apple high resolution screen and anti-aliased algorithm.
  3. Automatic measurements and interpretations.
  4. Simultaneous 12-lead ECG
  5. Bluetooth communication



ECG Recorder Specifications



Sampling Rate

A/D:24K SPS/Ch

Recording:1K SPS/Ch

Quantization Precision

A/D:24 Bits

Recording:16 Bits

Common Mode Rejection >110dB
Resolution 0.4uV
Input Impedance >20M
Frequency Response 0.05-250Hz(±3bB)
Time Constant >3.2Sec
Maximum Electrode Potential ±300mV DC
Dynamic Range ±15mV

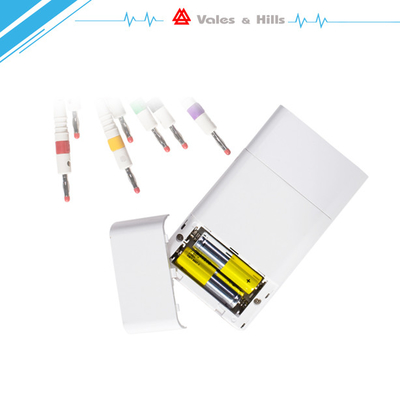

Power 2xAA Batteries
Communication Bluetooth
Defibrillation Project  Build-in

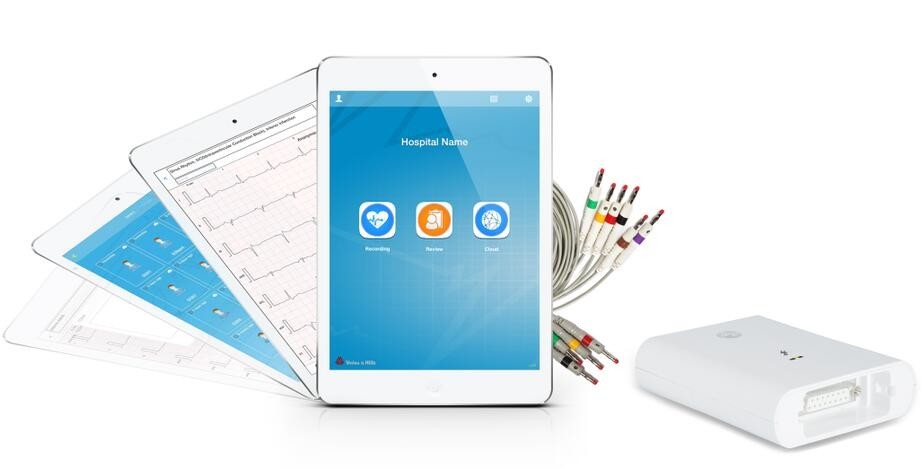

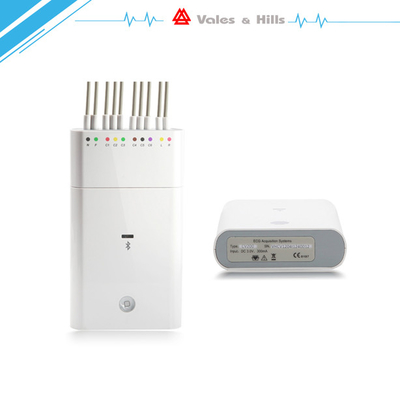

iCV200BLE is a 12-lead resting electrocardiograph system working with iPad(Apple APP: vhECG Pro). With iCV200BLE youcan record, view and interpret resting ECGs. You can also use it to print ECGs in various formats and send ECGs to vhCloud for sharing.

12 Lead Resting IPad / IPod Bluetooth ECG Device High Definition Display





About Us

Vales and Hills Biomedical Tech.Ltd is a global provider centralizing of electrocardiograph(ECG) products and ECG web services for clinical applications. For over 10 years,we have been creating a complete CardioView product line which covers Portable ECG(IOS and Android ), PC-ECG,ECG Workstation,Holter,ABPM, ECG Network and ECG Cloud Service.



Which a pioneering spirit in technology innovation, V&H has set up a truly top-notch team with determination, conceived in collaboration, dedicated to the proposition that clients and people are the first to be focused on. We continue to invest in advanced technology to meet the ever-changing clinical needs of the market.
